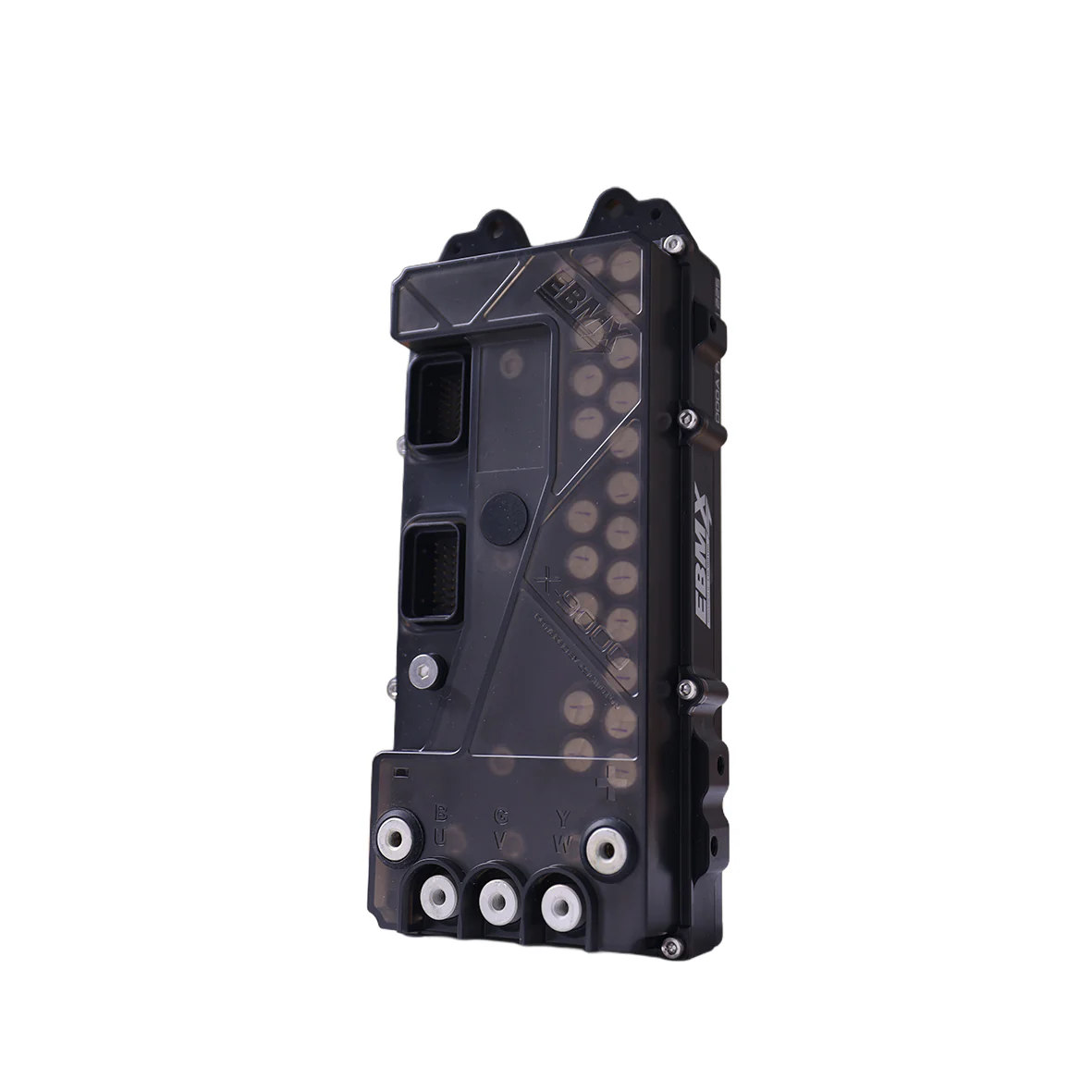

EBMX X-9000 V3 Controller
& Wiring Harness (Full Kit)
for Sur-Ron, Talaria, E-Ride Pro, Altis Sigma & More
The all-new EBMX X-9000 V3 Controller Kit is in stock, and shipping now! The EBMX X-9000 V3 controller is a complete redesign of the industry-leading V2 controller. After 18 months of testing and refinement, the X-9000 V3 electric dirt bike controller delivers unmatched performance, thermal efficiency, and plug-and-play compatibility with Sur Ron, Talaria, E-Ride Pro, Atlis Sigma, and other high-performance E-Moto platforms.
Built for serious riders and racers, this is more than the average aftermarket electric dirt bike controller — it’s a fully integrated, highly tunable, maximum performance ecosystem.
What's New with the EBMX X-9000 V3:
- 30x Infineon MOSFETs for 50kW continuous / 60kW peak power output
- 6-layer PCB and CNC copper busbars – 30% cooler operation than V2
- Slimmer rear profile for better fitment
- New square-set plug system to prevent pin damage
- Removable harness for easier servicing
- Supports 120V builds (no longer limited to 72V)
- Integrated IMU with Wheel Lift Assist
- EBMX X-Series App: Full throttle, regen, and motor tuning via Bluetooth
- Updated SW102T Color Display with customizable metrics
App & Display Integration:
- Live tuning: Regen, throttle curve, max amps, motor settings
- Load-and-Go Profiles: Choose presets by bike or battery type
- Modes: Street / Race, plus 3-level assist & EBMX E-Clutch
- Live Metrics: Power output, RPM, temp, speed, distance, regen, etc.
X-9000 V3 Fitment & Compatibility
The EBMX X-9000 V3 controller is plug-and-play compatible with nine electric dirt bike and e-moto platforms, including the Sur Ron Light Bee, Sur Ron Ultra Bee, Talaria XXX and E Ride Pro platforms. Each platform requires its own matched wiring harness, sold separately by bike model.
| Platform | Fitment | Harness Note |
|---|---|---|
| Sur Ron Light Bee | Plug-and-play | Harness sold separately by variant |
| Sur Ron Ultra Bee | Plug-and-play | Harness sold separately by variant |
| Talaria MX3 | Plug-and-play | Shared MX3/MX4/MX5 harness |
| Talaria MX4 | Plug-and-play | Shared MX3/MX4/MX5 harness |
| Talaria MX5 | Plug-and-play | Shared MX3/MX4/MX5 harness |
| Talaria XXX | Plug-and-play | Dedicated XXX harness |
| E-Ride Pro SS 2.0 | Plug-and-play | Requires V3 battery |
| E-Ride Pro SS 3.0 | Plug-and-play | Breaker and non-breaker harness versions available |
| E-Ride Pro SR | Plug-and-play | Dedicated SR harness |
| ReRode R1 | Plug-and-play | Dedicated R1 harness |
| QS138 70H / 90H | Plug-and-play | Motor-specific, not bike-specific |
| 79 Bike Falcon S / Pro | Plug-and-play | Dedicated 79 Bike harness |
| Altis Sigma | Coming soon | Not yet available, don't buy expecting fitment today |
V2 harnesses are not compatible with the V3 controller. If you're upgrading from a V2 setup, order the correct V3-specific harness for your bike, not only the controller alone.
The EBMX X-9000 V3 heatsinks are available in multiple colorways: Red, Blue, White, Purple, and Gold (Black included standard). Water-cooled heatsink upgrade available for high-endurance race builds.
Compatible Motors w/ Preloaded Tunes:
- OEM Sur Ron / Talaria / E-Ride Pro motors
- EBMX XLB-60, XTA-60, XUB-80
- KO RS & KO F Spec
- QS138 70H / 90H
- 30+ supported motor profiles out of the box
Full Kit Includes:
- EBMX X-9000 V3 Controller
- Air-Cooled Heatsink
- SW102T Full-Color Display
- Thumb Throttle
- Bluetooth Module
- Mounting Brackets
- 1–2 Wiring Harness Adapter
- IP67-Rated CNC Alloy Housing
X-9000 V3 Specifications:
| Spec | Detail |
|---|---|
| Rated Power | 50kW Continuous / 60kW Peak |
| Voltage | Up to 120V (48–110V Operating) |
| Phase Current | 1000A Continuous / 1600A Burst |
| Control Protocol | Field-Oriented Control (FOC) – VESC |
| Firmware | Custom EBMX VESC |
| IMU Support | Wheel Lift Assist & E-Clutch |
| Waterproofing | IP67 Rated |
| Operating Temp | -25°C to 80°C |
| Warranty | 2 Years |
| Heat Sink Colors | Black (included) / Red / White / Blue/ Purple / Gold |
Built for Riders Who Want:
- Maximum power + smooth throttle feel
- Full adjustability from their phone
- Reliable, thermally stable high-performance output
- Seamless tuning, no laptop required
- Safer wheel control with built-in IMU
EBMX X-9000 V3 Controller: Frequently Asked Questions
Fitment, power output, and setup before you buy.
Q: What makes the X-9000 V3 different from the V2 controller?
A: The V3 is a full redesign, not a firmware update. 30x Infineon MOSFETs push output to 50kW continuous and 60kW peak, and a 6-layer PCB with CNC copper busbars keeps it running 30% cooler than the V2 under the same load. It also drops the V2's voltage ceiling, supporting up to 120V builds instead of topping out at 72V.
Q: Which bikes and motors work with the X-9000 V3?
A: Plug-and-play fitment covers Sur Ron Light Bee and Ultra Bee, Talaria MX3/MX4/MX5 and XXX, E-Ride Pro SS 2.0 and 3.0, E-Ride Pro SR, ReRode R1, QS138 70H/90H, and 79 Bike Falcon S/Pro. Altis Sigma support is coming soon but not live yet. 30+ motor tunes ship preloaded, so most riders won't need to build a custom map from scratch.
Q: How much power does the X-9000 V3 actually put out?
A: 50kW continuous, 60kW peak, with 1000A of continuous phase current and up to 1600A in burst. Field-Oriented Control keeps that power smooth instead of jerky, which matters more than the peak number once you're actually on the throttle.
Q: Can I use my V2 wiring harness with the V3 controller?
A: No. The V3 uses a new square-set plug system built to stop pin damage, and it isn't backward compatible with V2 harnesses. If you're upgrading from a V2 setup, budget for the correct V3-specific harness for your bike, not just the controller.
Q: What does Wheel Lift Assist do?
A: An integrated IMU reads the bike's orientation in real time to enable Wheel Lift Assist. It works alongside Street and Race modes, three-level assist settings, and EBMX E-Clutch, all tunable through the EBMX X-Series app over Bluetooth. If you searched "wheelie control" for this controller, this is the feature you're after.
Q: How does the X-9000 V3 compare to other high-power controllers?
A: The X-9000 V3 tops out at 50kW continuous / 60kW peak with 120V support, ahead of most kits built for lower-voltage platforms. If you're cross-shopping high-power controllers, compare continuous power and voltage ceiling, not just the peak number printed on the box.
Q: What's included in the full kit?
A: The controller, an air-cooled heatsink, SW102T full-color display, thumb throttle, Bluetooth module, mounting brackets, and a wiring harness adapter matched to your bike. IP67-rated housing comes standard, and a water-cooled heatsink is available for high-endurance race builds.
Q: Is the X-9000 V3 in stock right now?
A: Availability moves fast on this controller. Check the buy box above for real-time stock by color and harness, or contact us if you don't see the combo you need and we'll help you find it.
Q: Do I need the display, or can I run the controller without one?
A: The SW102T full-color display comes standard in the full kit and shows motor temp, controller temp, speed, and live tuning metrics. Running without it is possible but not recommended, since you'd lose visibility into thermal load exactly when you're pushing 50kW.
Q: What's the warranty on the X-9000 V3?
A: Two years, handled directly through REV Rides as an authorized EBMX dealer. That covers the controller electronics under normal use, not damage from incompatible harness wiring or unsupported motor builds outside the 30+ preloaded tunes.
