EBMX X-9000 V2 Controller (No Harness)
EBMX X9000 V2 Controller
for E Ride Pro, Sur Ron Ultra Bee/Light Bee, Talaria XXX/Sting and Segway X260
The EBMX X-9000 V2 controller & wiring harness kit is compatible with a range of electric dirt bikes and motors. The X9000 V2 pairs perfectly with EBMX high performance batteries and motors, if you're looking to build a top-performing electric dirt bike or e-moto. EBMX performance parts are built to high standards, and backed by a 2-year warranty that is handled directly through REV Rides. REV Rides is an authorized dealer for EBMX products.
EBMX has combined strenuous in-house R&D and collaborations with industry experts to bring you the ultimate Electric Motor Controller.
The X9000 V2 has been purpose-built with dirt bike riders and e-moto in mind, as is simple to install.
EBMX X9000 V2 Compatibility Chart: (Plug & Play)
-
EBMX X9000 V2 Compatibility Chart
Plug & Play Vehicle Applications
- OEM Sur Ron Light Bee
- OEM Sur Ron Ultra Bee
- OEM Segway X260
- OEM Talaria Sting MX3
- OEM Talaria Sting R MX4
- Talaria XXX / X3
- OEM E Ride Pro SS
- Rerode
- 79Bike
Plug & Play Controller Applications
- EBMX XLB-60
- EBMX XUB-80
- KO Moto RS SurRon
- KO Moto F Spec SurRon
- KO Moto F Spec Talaria
Motor Compatibility
- QS138-70H
- QS138-90H
Future Support (Coming Soon)
- Altis Sigma
NOTE: 12-Pin 12v harness/plug not included
The high performance EBMX X9000 V2 controller that you purchase will contain all parts required to replace your OEM controller – with the EBMX X-9000 high performance controller. Be sure to check for compatibility and fitment below, before purchasing.
This kit is an easy to install, DIY bolt-on controller upgrade the Segway X260, Sur Ron Light Bee and Talaria Sting bikes. No drilling, no extra brackets required, no wires to extend, or additional parts needed (wiring harness adapter is included).
We are currently tuning the following Motors and will update the above list as each motor is fully tested and available to choose on the EBMX app.
- Sotion FW01
- Sotion Talaria
- Apollo RFN
- ME1803 water cooled
- QS Braaap Moto E Hub Motor
Official EBMX Installation Video:
REV Rides' Detailed EBMX X9000 Installation Video with Tips & Tricks:
EBMX uses components sourced from reputable suppliers. Every part has been engineered for maximum performance. From the CNC machined internals, bus bars, and injection molded cover, to the fully waterproof construction.
EBMX Mobile Application Overview
- Custom EBMX App for tuning and full control (Available free in the App Store and Google Play Store)
- Multiple power modes and full adjustment in each mode
- Adjustable speed limits for different ride modes
- Customizable dashboard to set the display up how you want
- Built-in and programmable DC/DC Converter with 4 programmable 12v outputs for running a coolant pump, headlights, and other 12v accessories as required and controllable through the app.

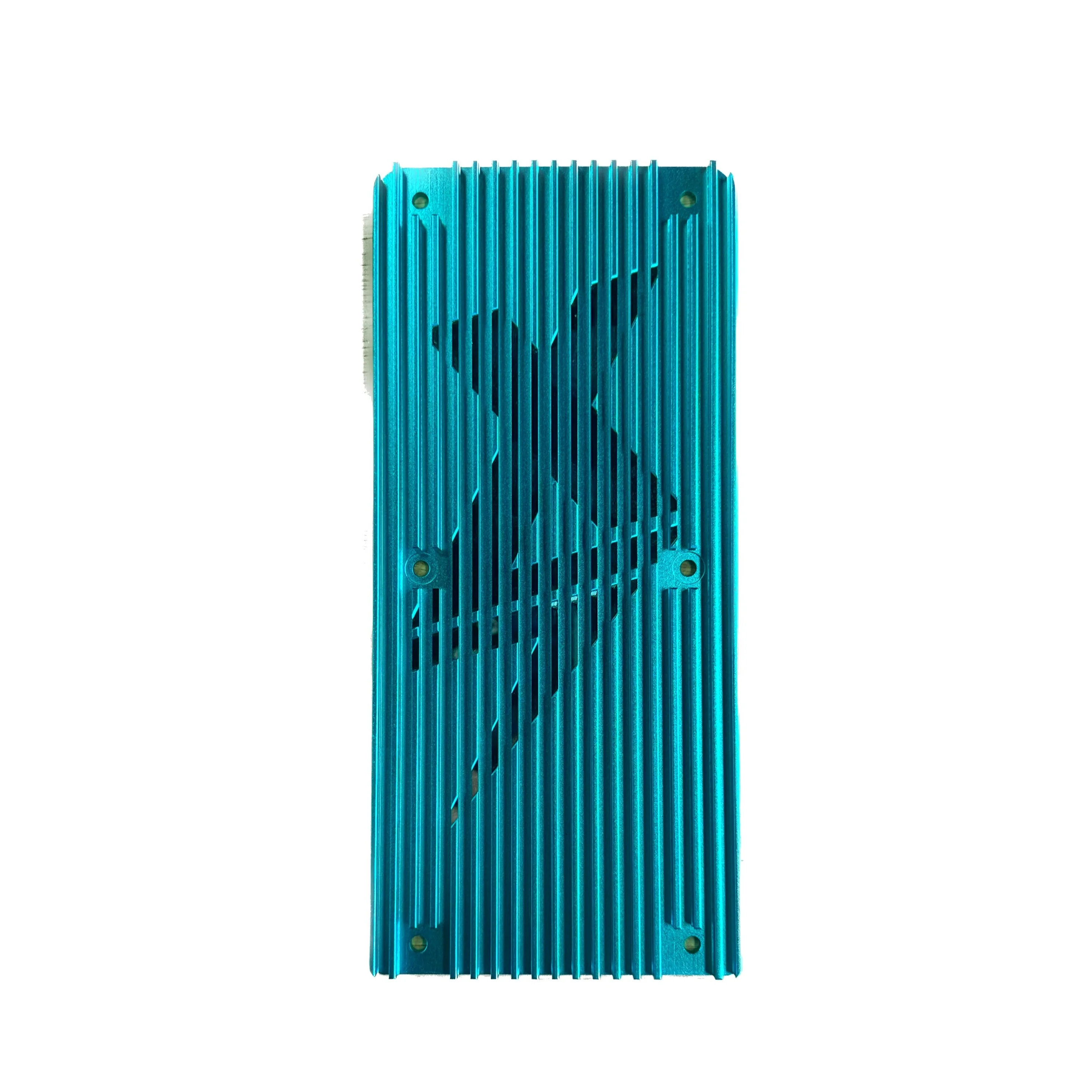

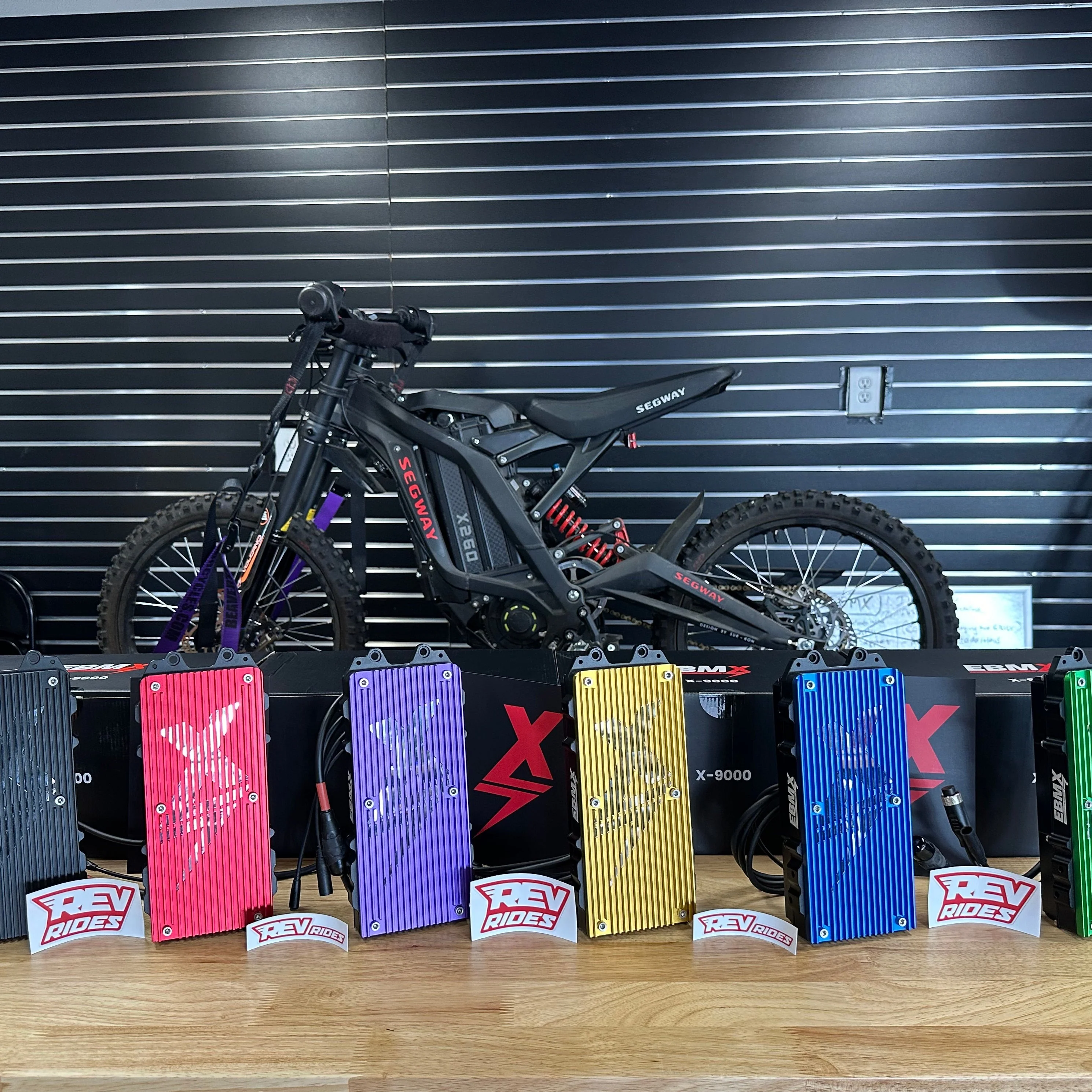

- Air-cooled heatsink as standard (comes in black, blue, red, gold or purple).
- Wiring harness connections are fully sealed and come straight out of the controller with fully waterproof IP67-rated connectors for the harnesses.
- Direct bolt-in for the Sur Ron Light Bee and Talaria Sting bikes with no extra brackets needed, no phase wire extensions or other additional parts (harness adapter included).
- Integration with both Sur Ron hall-based motors and Talaria encoder motors
- SW102 (EggRider) Display included and custom firmware to allow monitoring of motor temp, controller temp along with all of the regular display info.
- Can be setup with a smart phone for the display or to check info as desired
- Super heavy-duty construction internally and externally to sustain hard riding and high-powered batteries and motors.
EBMX X9000 V2 CONTROLLER SPECIFICATIONS
| EBMX X9000 v2 Controller | Description |
|---|---|
| Compatible with VESC Firmware | Yes |
| Custom EBMX Firmware and Tune Profiles | Yes |
| Control Method | FOC |
| Input Voltage Range | 40v - 100v |
| Working Voltage Range | 48v - 82v |
| Max Phase Current | 1000A |
| Max Battery Current | 500A |
| Peak Input Power | 40kW |
| Peak Output Power | 35kW* |
| Continuous Output Power (Water-Cooled) | 20kW* |
| Continuous Output Power (Air-Cooled) | 15kW* |
| Operating Temperature Range | -25 to 80 Degrees Celsius |
| Maximum Efficiency | >95% |
| Extra Beefy Internal CNC Machined Terminals and Connections | Yes |
* To reach maximum performance and continuous output power levels you will need a high performance motor and battery capable of performing at this level.
| Case Features |
Description |
|---|---|
| CNC Air Cooled Heatsink Option | Available |
| CNC Water Cooled Heatsink Option | Available |
| Direct Factory Fit Mount | For Sur Ron LBX and Talaria Sting |
| Ingress Protection | IP67 Rated |
| 16 Pin Communications Plug | Combines all types of bikes used |
| 12 Pin 12v Plug (not included) | 4 programmable outputs |
| In-Built Programmable DCDC Converter | 12v-5A; to run coolant pump, lights, auxiliary features |
Controller Kit Extras and Features
• Variable Thumb Throttle
• Bluetooth module
• SW102 Display (with custom EBMX firmware and options)
• DIY Harness for Custom Bike Conversion (optional)
• Water Cooled Heatsink (optional)
Custom Tunes for Various Motor Options
• Stock Talaria Sting Motor
• KO Moto Motors
• Sur Ron Ultra Bee Motor
• QS 138-90H Water Cooled Motor
• QS 138-V3 Gear Reduction Motor
• ME1803 Water Cooled Motor
• Artic Leopard Motor
• More coming soon...EBMX
EBMX App Features BMX App Features
• Free to download
• Use as a Display with Full Dashboard (customizable)
• Street Mode (3 separate programmable power settings)
• Race Mode (3 separate programmable power settings)
• Speed Limit Settings peed Limit Settings
• Control 4 separate 12v outputs
• Power Adjustments (kW)
• Control options for thumb throttle
• Torque Adjustments (phase amps)
• Fully customizable regen settings
• Throttle Sensitivity (ramping and curve type)
• Throttle Calibration Wizard
• Motor Tune Selection
• Quick change from 48v up to 72v Battery
• Stock Tilt Sensor (on/off)
• Stock Stand Sensor (on/off)
• Gear Ratio Adjustments for accurate display speed
Talaria MX3 / MX4 Sting R App setup
Talaria XXX EBMX Official Installation video
SurRon Ultra Bee Installation video
Upgrade your Sur-Ron Ultra Bee's speed and power with the EBMX X-9000 V2 Controller
This Sur-Ron Ultra Bee Kit will contain all parts needed for an OEM Replacement with the X-9000, including custom harness and brackets. ( if you already have an X-9000 you will need to purchase the upgrade Kit brackets and harness only) listed HERE
The EBMX X-9000 Power Kit operated with the OEM Ultra Bee Battery will increase power on tap and take your ride to 17kW and 800 Phase Amps.
You can also choose to push the limits with the EBMX 80v Battery this tune will be maxed out at 29.5kW. Adding the XUB-80 Ultra Bee Motor to allow you to ride harder, longer and faster will also allow you to run up to 40kW.
EBMX X9000 V2 Controller
for E Ride Pro, Sur Ron Ultra Bee/Light Bee, Talaria XXX/Sting and Segway X260
The EBMX X-9000 V2 controller & wiring harness kit is compatible with a range of electric dirt bikes and motors. The X9000 V2 pairs perfectly with EBMX high performance batteries and motors, if you're looking to build a top-performing electric dirt bike or e-moto. EBMX performance parts are built to high standards, and backed by a 2-year warranty that is handled directly through REV Rides. REV Rides is an authorized dealer for EBMX products.
EBMX has combined strenuous in-house R&D and collaborations with industry experts to bring you the ultimate Electric Motor Controller.
The X9000 V2 has been purpose-built with dirt bike riders and e-moto in mind, as is simple to install.
EBMX X9000 V2 Compatibility Chart: (Plug & Play)
-
EBMX X9000 V2 Compatibility Chart
Plug & Play Vehicle Applications
- OEM Sur Ron Light Bee
- OEM Sur Ron Ultra Bee
- OEM Segway X260
- OEM Talaria Sting MX3
- OEM Talaria Sting R MX4
- Talaria XXX / X3
- OEM E Ride Pro SS
- Rerode
- 79Bike
Plug & Play Controller Applications
- EBMX XLB-60
- EBMX XUB-80
- KO Moto RS SurRon
- KO Moto F Spec SurRon
- KO Moto F Spec Talaria
Motor Compatibility
- QS138-70H
- QS138-90H
Future Support (Coming Soon)
- Altis Sigma
NOTE: 12-Pin 12v harness/plug not included
The high performance EBMX X9000 V2 controller that you purchase will contain all parts required to replace your OEM controller – with the EBMX X-9000 high performance controller. Be sure to check for compatibility and fitment below, before purchasing.
This kit is an easy to install, DIY bolt-on controller upgrade the Segway X260, Sur Ron Light Bee and Talaria Sting bikes. No drilling, no extra brackets required, no wires to extend, or additional parts needed (wiring harness adapter is included).
We are currently tuning the following Motors and will update the above list as each motor is fully tested and available to choose on the EBMX app.
- Sotion FW01
- Sotion Talaria
- Apollo RFN
- ME1803 water cooled
- QS Braaap Moto E Hub Motor
Official EBMX Installation Video:
REV Rides' Detailed EBMX X9000 Installation Video with Tips & Tricks:
EBMX uses components sourced from reputable suppliers. Every part has been engineered for maximum performance. From the CNC machined internals, bus bars, and injection molded cover, to the fully waterproof construction.
EBMX Mobile Application Overview
- Custom EBMX App for tuning and full control (Available free in the App Store and Google Play Store)
- Multiple power modes and full adjustment in each mode
- Adjustable speed limits for different ride modes
- Customizable dashboard to set the display up how you want
- Built-in and programmable DC/DC Converter with 4 programmable 12v outputs for running a coolant pump, headlights, and other 12v accessories as required and controllable through the app.
- Air-cooled heatsink as standard (comes in black, blue, red, gold or purple).
- Wiring harness connections are fully sealed and come straight out of the controller with fully waterproof IP67-rated connectors for the harnesses.
- Direct bolt-in for the Sur Ron Light Bee and Talaria Sting bikes with no extra brackets needed, no phase wire extensions or other additional parts (harness adapter included).
- Integration with both Sur Ron hall-based motors and Talaria encoder motors
- SW102 (EggRider) Display included and custom firmware to allow monitoring of motor temp, controller temp along with all of the regular display info.
- Can be setup with a smart phone for the display or to check info as desired
- Super heavy-duty construction internally and externally to sustain hard riding and high-powered batteries and motors.
EBMX X9000 V2 CONTROLLER SPECIFICATIONS
| EBMX X9000 v2 Controller | Description |
|---|---|
| Compatible with VESC Firmware | Yes |
| Custom EBMX Firmware and Tune Profiles | Yes |
| Control Method | FOC |
| Input Voltage Range | 40v - 100v |
| Working Voltage Range | 48v - 82v |
| Max Phase Current | 1000A |
| Max Battery Current | 500A |
| Peak Input Power | 40kW |
| Peak Output Power | 35kW* |
| Continuous Output Power (Water-Cooled) | 20kW* |
| Continuous Output Power (Air-Cooled) | 15kW* |
| Operating Temperature Range | -25 to 80 Degrees Celsius |
| Maximum Efficiency | >95% |
| Extra Beefy Internal CNC Machined Terminals and Connections | Yes |
* To reach maximum performance and continuous output power levels you will need a high performance motor and battery capable of performing at this level.
| Case Features |
Description |
|---|---|
| CNC Air Cooled Heatsink Option | Available |
| CNC Water Cooled Heatsink Option | Available |
| Direct Factory Fit Mount | For Sur Ron LBX and Talaria Sting |
| Ingress Protection | IP67 Rated |
| 16 Pin Communications Plug | Combines all types of bikes used |
| 12 Pin 12v Plug (not included) | 4 programmable outputs |
| In-Built Programmable DCDC Converter | 12v-5A; to run coolant pump, lights, auxiliary features |
Controller Kit Extras and Features
• Variable Thumb Throttle
• Bluetooth module
• SW102 Display (with custom EBMX firmware and options)
• DIY Harness for Custom Bike Conversion (optional)
• Water Cooled Heatsink (optional)
Custom Tunes for Various Motor Options
• Stock Talaria Sting Motor
• KO Moto Motors
• Sur Ron Ultra Bee Motor
• QS 138-90H Water Cooled Motor
• QS 138-V3 Gear Reduction Motor
• ME1803 Water Cooled Motor
• Artic Leopard Motor
• More coming soon...EBMX
EBMX App Features BMX App Features
• Free to download
• Use as a Display with Full Dashboard (customizable)
• Street Mode (3 separate programmable power settings)
• Race Mode (3 separate programmable power settings)
• Speed Limit Settings peed Limit Settings
• Control 4 separate 12v outputs
• Power Adjustments (kW)
• Control options for thumb throttle
• Torque Adjustments (phase amps)
• Fully customizable regen settings
• Throttle Sensitivity (ramping and curve type)
• Throttle Calibration Wizard
• Motor Tune Selection
• Quick change from 48v up to 72v Battery
• Stock Tilt Sensor (on/off)
• Stock Stand Sensor (on/off)
• Gear Ratio Adjustments for accurate display speed
Talaria MX3 / MX4 Sting R App setup
Talaria XXX EBMX Official Installation video
SurRon Ultra Bee Installation video
Upgrade your Sur-Ron Ultra Bee's speed and power with the EBMX X-9000 V2 Controller
This Sur-Ron Ultra Bee Kit will contain all parts needed for an OEM Replacement with the X-9000, including custom harness and brackets. ( if you already have an X-9000 you will need to purchase the upgrade Kit brackets and harness only) listed HERE
The EBMX X-9000 Power Kit operated with the OEM Ultra Bee Battery will increase power on tap and take your ride to 17kW and 800 Phase Amps.
You can also choose to push the limits with the EBMX 80v Battery this tune will be maxed out at 29.5kW. Adding the XUB-80 Ultra Bee Motor to allow you to ride harder, longer and faster will also allow you to run up to 40kW.
Original: $1.00
-65%$1.00
$0.35Description
EBMX X9000 V2 Controller
for E Ride Pro, Sur Ron Ultra Bee/Light Bee, Talaria XXX/Sting and Segway X260
The EBMX X-9000 V2 controller & wiring harness kit is compatible with a range of electric dirt bikes and motors. The X9000 V2 pairs perfectly with EBMX high performance batteries and motors, if you're looking to build a top-performing electric dirt bike or e-moto. EBMX performance parts are built to high standards, and backed by a 2-year warranty that is handled directly through REV Rides. REV Rides is an authorized dealer for EBMX products.
EBMX has combined strenuous in-house R&D and collaborations with industry experts to bring you the ultimate Electric Motor Controller.
The X9000 V2 has been purpose-built with dirt bike riders and e-moto in mind, as is simple to install.
EBMX X9000 V2 Compatibility Chart: (Plug & Play)
-
EBMX X9000 V2 Compatibility Chart
Plug & Play Vehicle Applications
- OEM Sur Ron Light Bee
- OEM Sur Ron Ultra Bee
- OEM Segway X260
- OEM Talaria Sting MX3
- OEM Talaria Sting R MX4
- Talaria XXX / X3
- OEM E Ride Pro SS
- Rerode
- 79Bike
Plug & Play Controller Applications
- EBMX XLB-60
- EBMX XUB-80
- KO Moto RS SurRon
- KO Moto F Spec SurRon
- KO Moto F Spec Talaria
Motor Compatibility
- QS138-70H
- QS138-90H
Future Support (Coming Soon)
- Altis Sigma
NOTE: 12-Pin 12v harness/plug not included
The high performance EBMX X9000 V2 controller that you purchase will contain all parts required to replace your OEM controller – with the EBMX X-9000 high performance controller. Be sure to check for compatibility and fitment below, before purchasing.
This kit is an easy to install, DIY bolt-on controller upgrade the Segway X260, Sur Ron Light Bee and Talaria Sting bikes. No drilling, no extra brackets required, no wires to extend, or additional parts needed (wiring harness adapter is included).
We are currently tuning the following Motors and will update the above list as each motor is fully tested and available to choose on the EBMX app.
- Sotion FW01
- Sotion Talaria
- Apollo RFN
- ME1803 water cooled
- QS Braaap Moto E Hub Motor
Official EBMX Installation Video:
REV Rides' Detailed EBMX X9000 Installation Video with Tips & Tricks:
EBMX uses components sourced from reputable suppliers. Every part has been engineered for maximum performance. From the CNC machined internals, bus bars, and injection molded cover, to the fully waterproof construction.
EBMX Mobile Application Overview
- Custom EBMX App for tuning and full control (Available free in the App Store and Google Play Store)
- Multiple power modes and full adjustment in each mode
- Adjustable speed limits for different ride modes
- Customizable dashboard to set the display up how you want
- Built-in and programmable DC/DC Converter with 4 programmable 12v outputs for running a coolant pump, headlights, and other 12v accessories as required and controllable through the app.
- Air-cooled heatsink as standard (comes in black, blue, red, gold or purple).
- Wiring harness connections are fully sealed and come straight out of the controller with fully waterproof IP67-rated connectors for the harnesses.

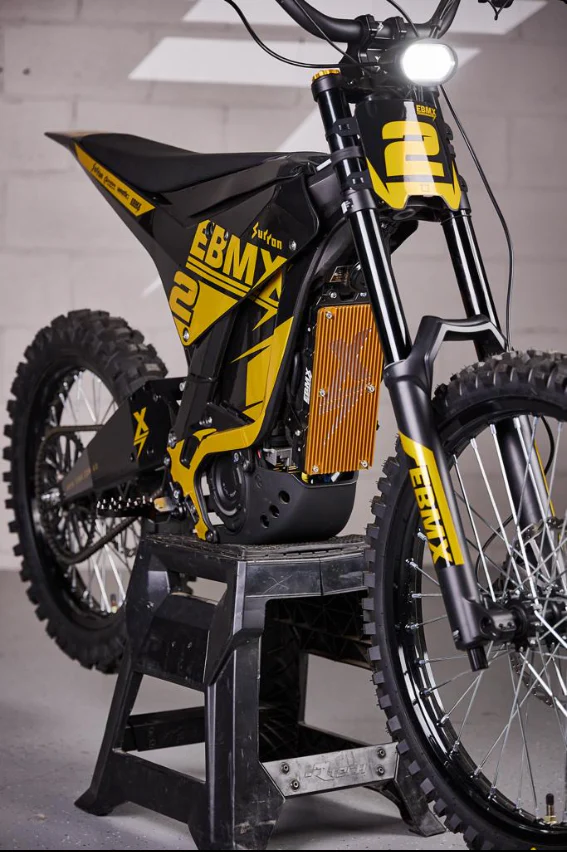

- Direct bolt-in for the Sur Ron Light Bee and Talaria Sting bikes with no extra brackets needed, no phase wire extensions or other additional parts (harness adapter included).
- Integration with both Sur Ron hall-based motors and Talaria encoder motors
- SW102 (EggRider) Display included and custom firmware to allow monitoring of motor temp, controller temp along with all of the regular display info.
- Can be setup with a smart phone for the display or to check info as desired
- Super heavy-duty construction internally and externally to sustain hard riding and high-powered batteries and motors.
EBMX X9000 V2 CONTROLLER SPECIFICATIONS
| EBMX X9000 v2 Controller | Description |
|---|---|
| Compatible with VESC Firmware | Yes |
| Custom EBMX Firmware and Tune Profiles | Yes |
| Control Method | FOC |
| Input Voltage Range | 40v - 100v |
| Working Voltage Range | 48v - 82v |
| Max Phase Current | 1000A |
| Max Battery Current | 500A |
| Peak Input Power | 40kW |
| Peak Output Power | 35kW* |
| Continuous Output Power (Water-Cooled) | 20kW* |
| Continuous Output Power (Air-Cooled) | 15kW* |
| Operating Temperature Range | -25 to 80 Degrees Celsius |
| Maximum Efficiency | >95% |
| Extra Beefy Internal CNC Machined Terminals and Connections | Yes |
* To reach maximum performance and continuous output power levels you will need a high performance motor and battery capable of performing at this level.
| Case Features |
Description |
|---|---|
| CNC Air Cooled Heatsink Option | Available |
| CNC Water Cooled Heatsink Option | Available |
| Direct Factory Fit Mount | For Sur Ron LBX and Talaria Sting |
| Ingress Protection | IP67 Rated |
| 16 Pin Communications Plug | Combines all types of bikes used |
| 12 Pin 12v Plug (not included) | 4 programmable outputs |
| In-Built Programmable DCDC Converter | 12v-5A; to run coolant pump, lights, auxiliary features |
Controller Kit Extras and Features
• Variable Thumb Throttle
• Bluetooth module
• SW102 Display (with custom EBMX firmware and options)
• DIY Harness for Custom Bike Conversion (optional)
• Water Cooled Heatsink (optional)
Custom Tunes for Various Motor Options
• Stock Talaria Sting Motor
• KO Moto Motors
• Sur Ron Ultra Bee Motor
• QS 138-90H Water Cooled Motor
• QS 138-V3 Gear Reduction Motor
• ME1803 Water Cooled Motor
• Artic Leopard Motor
• More coming soon...EBMX
EBMX App Features BMX App Features
• Free to download
• Use as a Display with Full Dashboard (customizable)
• Street Mode (3 separate programmable power settings)
• Race Mode (3 separate programmable power settings)
• Speed Limit Settings peed Limit Settings
• Control 4 separate 12v outputs
• Power Adjustments (kW)
• Control options for thumb throttle
• Torque Adjustments (phase amps)
• Fully customizable regen settings
• Throttle Sensitivity (ramping and curve type)
• Throttle Calibration Wizard
• Motor Tune Selection
• Quick change from 48v up to 72v Battery
• Stock Tilt Sensor (on/off)
• Stock Stand Sensor (on/off)
• Gear Ratio Adjustments for accurate display speed
Talaria MX3 / MX4 Sting R App setup
Talaria XXX EBMX Official Installation video
SurRon Ultra Bee Installation video
Upgrade your Sur-Ron Ultra Bee's speed and power with the EBMX X-9000 V2 Controller
This Sur-Ron Ultra Bee Kit will contain all parts needed for an OEM Replacement with the X-9000, including custom harness and brackets. ( if you already have an X-9000 you will need to purchase the upgrade Kit brackets and harness only) listed HERE
The EBMX X-9000 Power Kit operated with the OEM Ultra Bee Battery will increase power on tap and take your ride to 17kW and 800 Phase Amps.
You can also choose to push the limits with the EBMX 80v Battery this tune will be maxed out at 29.5kW. Adding the XUB-80 Ultra Bee Motor to allow you to ride harder, longer and faster will also allow you to run up to 40kW.
